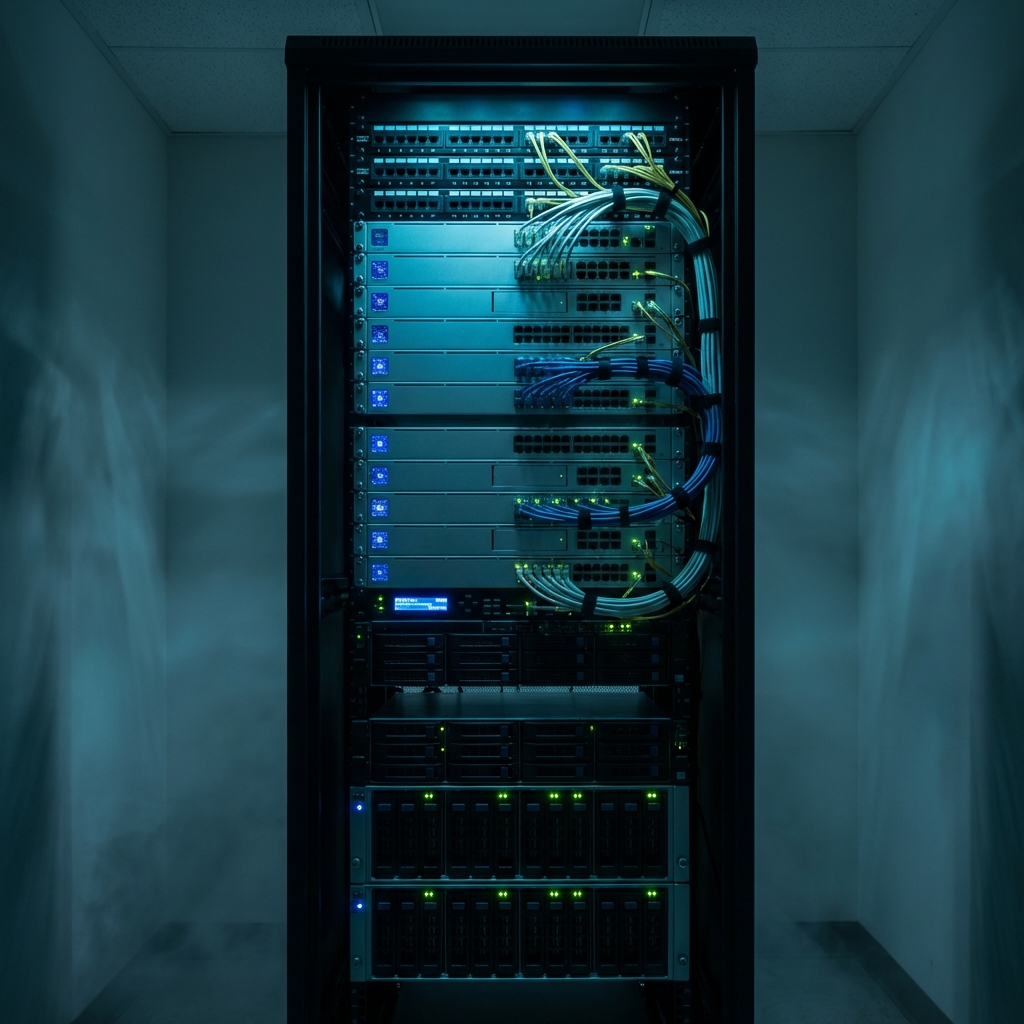

Architecture Overview

The logical structure of my network

The heart of my digital infrastructure is a segmented network optimized for security and performance using a robust 10G/2.5G backbone.

Network Topology (ASCII Art)

      [Internet (5G)]
           |
    [MikroTik Chateau 5G] (WAN/Backup)
           |
    [Ubiquiti UCG-Fiber] (Gateway)
           |
    [USW-Aggregation] (10G Core Backbone)
           |
    +------+---------------------------+-------------------------+
    |                                  |                         |
[2x Minisforum MS-01]          [USW-Lite-16-POE]          [USW-Flex-2.5G]
    |                              |                         |
(Proxmox HA Cluster)           +---+---+                 (Office LAN)
                               |       |
                         [U7 Pro]   [UVC-G6]
                       (Wi-Fi 7)    (Cam)

The network is centered around the USW-Aggregation as a 10G backbone, connecting the high-performance Minisforum MS-01 virtualization nodes. Use of VLANs ensures strict separation between Management, IoT, and Trusted networks.
